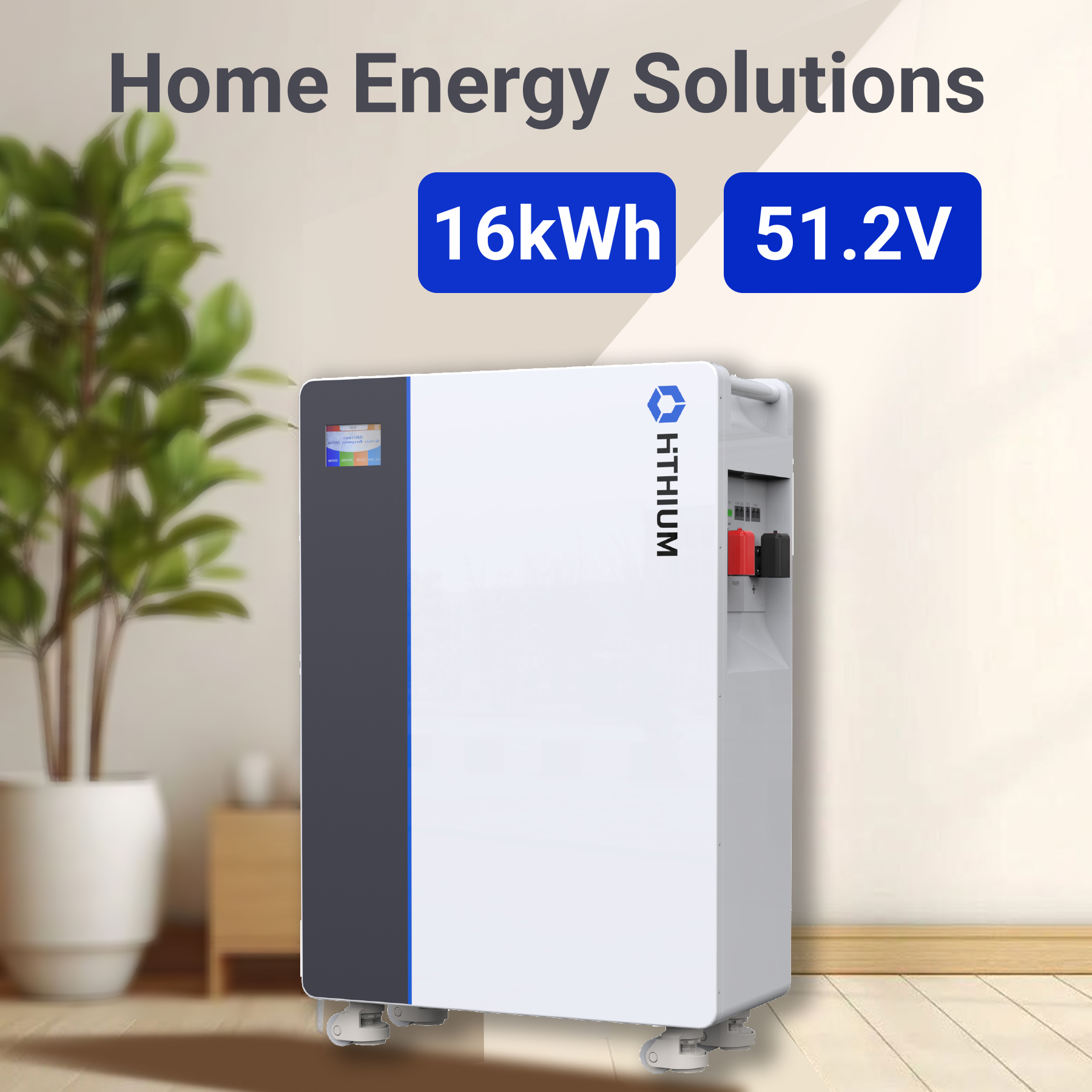

Hithium HeroEE 16 16KWH Lithium LiFePO4 IPS Battery

Specifications:

• Battery Type: Lithium-iron phosphate (LiFePO4)

• Battery Capacity [kWh]: 16kWh

• Battery Cell Lifespan: 11000 cycles

• Rated Voltage [Vdc]: 51.2 [VDC]

• Discharge Voltage Range [Vdc]: 43.2 ~ 56.8 [VDC]

• Charge Voltage Range [Vdc]: 43.2 ~ 56.8 [VDC]

• Recommend Charge / Discharge Current [A]: 100 A

• Maximum charge/discharge current [A]: 200 A

• Charge Mode: CC - CV

• Charge / Discharge Port: M8 Bolt

• Build-in Communication Ports: CAN / RS485 / RS232 / WiFi / Bluetooth (optional)

• Build-in Screen: Yes, LCD Touchscreen

• Scalable (Max units in parallel): Up to 16 batteries, 256 kWh

• Compatible Inverter Brand: Hithium / Victron Energy / Deye / Voltronic / SMA / GoodWe / Growatt / TBB / MUST / ...

• IP Rating: IP30

• Recommend Operating Temperature [°C]: Charging: 0°C ~ 40°C | Discharging: -20°C ~ 40°C

• Recommend Storage Temperature [°C]: -20°C ~ 60°C

• Humidity: 10% ~ 90% RH

• Operating Altitude: ≤ 3000m

• Cooling: Natural cooling

• Weight [kg]: Approx. 110kg (Net Weight)

• Wheels: Four

• Protection: Over-temperature Protection | Under-voltage Protection | Over-charge Protection, Over-current Protection | Short-circuit Protection | Under-voltage Protection | Reverse connection Protection | Fault Protection
